When architects and engineers design buildings, fire safety stands as one of their most critical concerns. Material choice can mean the difference between a structure that maintains its integrity during a fire and one that fails catastrophically. Heat-Resistant Steel offers exceptional fire resistance properties that make it an ideal choice for safe building design, maintaining structural strength even at extremely high temperatures.
Unlike many construction materials that weaken or melt when exposed to fire, stainless steel does not burn and retains much of its structural capacity during fire events. This non-combustible material can withstand temperatures that would cause other metals like aluminum to fail completely. The chromium content in stainless steel provides natural oxidation resistance at high temperatures.
Building codes and safety standards recognize stainless steel’s superior fire performance. Many stainless steel products meet fire resistance requirements without additional testing or protective coatings. This reliability gives designers confidence when specifying materials for critical applications like building facades, structural elements, and fire-rated assemblies.
Key Takeaways
- Stainless steel maintains structural integrity at high temperatures while other materials fail or melt
- The material’s non-combustible nature prevents it from contributing to fire spread in buildings
- Proper grade selection and design practices maximize stainless steel’s fire safety benefits in construction
Fundamentals of Stainless Steel Fire Resistance
Stainless steel provides excellent fire resistance through its non-combustible properties and high melting point of over 1375°C. The material maintains structural integrity at elevated temperatures while meeting strict building safety standards through specialized fire testing protocols.
How Stainless Steel Reacts to Fire
Stainless steel does not burn or ignite when exposed to flames. The material’s surface remains stable in oxidizing conditions found in most fires.
Common grades like 304 and 316 maintain useful strength at temperatures over 800°C. At 700°C, these grades retain about 55% of their room temperature strength.
Key Temperature Performance:
- Melting point: Above 1375°C
- Useful oxidation resistance: Over 800°C
- Strength retention at 700°C: 55% of ambient levels
The material experiences thermal expansion during fire exposure. This can cause distortion but does not compromise the steel’s basic fire resistance properties.
Stainless steel’s lower thermal conductivity helps contain heat flow through structures. However, thermal gradients may create distortion issues that require design consideration.
Non-Combustibility and Safety Advantages
Stainless steel offers complete non-combustibility in fire situations. It will not assist in fire propagation or flame spread across surfaces.
The material does not emit toxic gases when heated. This provides a significant safety advantage over materials that release harmful substances during fires.
Safety Benefits Include:
- No flame spread contribution
- No toxic gas emission
- Structural integrity maintenance
- Heat containment properties
Tests show stainless steel structures maintain integrity even after prolonged exposure to hydrocarbon fires. This contrasts sharply with materials like aluminum and GRP, which offer little fire resistance due to low melting points.
Fire doors made with 316 stainless steel frames showed excellent performance. After 60 minutes of testing, the safe side temperature reached only 98°C while containing the fire completely.
Fire Ratings and Standards in Building Design
Stainless steel as a raw material does not carry an intrinsic fire rating. Fire resistance ratings apply to specific fabricated components tested under precise conditions.
Primary Testing Standards:
- BS 476 Parts 20-22 (load-bearing and non-load-bearing elements)
- International Maritime Organisation Resolution A517
- Building-specific fire safety codes
Fire testing focuses on complete assemblies rather than base materials. Tests measure temperature transmission, structural integrity, and smoke penetration over time periods.
A duplex stainless steel bulkhead survived simulated hydrocarbon fires reaching 1100°C. The safe face remained below 30°C after 40 minutes and only reached 110°C after 60 minutes.
Engineers must work with component manufacturers early in design phases. This prevents costly changes and ensures proper fire resistance certification for specific applications.
Building codes require tested assemblies that meet specific time and temperature criteria. Stainless steel components consistently perform well in these standardized fire resistance tests.
Key Properties of Stainless Steel in Fire Conditions
Stainless steel maintains critical structural properties at temperatures exceeding 800°C and resists melting until 1375°C. The material retains 55% of its ambient temperature strength at 700°C while demonstrating superior oxidation resistance compared to carbon steel.
Oxidation Resistance at High Temperatures
Common building grades like 304 and 316 stainless steel provide excellent oxidation resistance at temperatures above 800°C. This resistance prevents the formation of harmful oxides that weaken the material structure during fire exposure.
The austenitic family offers the most reliable performance in fire conditions. These grades maintain their protective surface layer even when exposed to intense heat and flames.
Unlike carbon steel, stainless steel does not ignite or contribute to fire propagation. The material’s inert surface remains stable in oxidizing conditions typical of most fire scenarios.
Key oxidation resistance features:
- Maintains protective surface at 800°C+
- No contribution to flame spread
- Stable performance in oxidizing environments
- Long-term resistance to high-temperature exposure

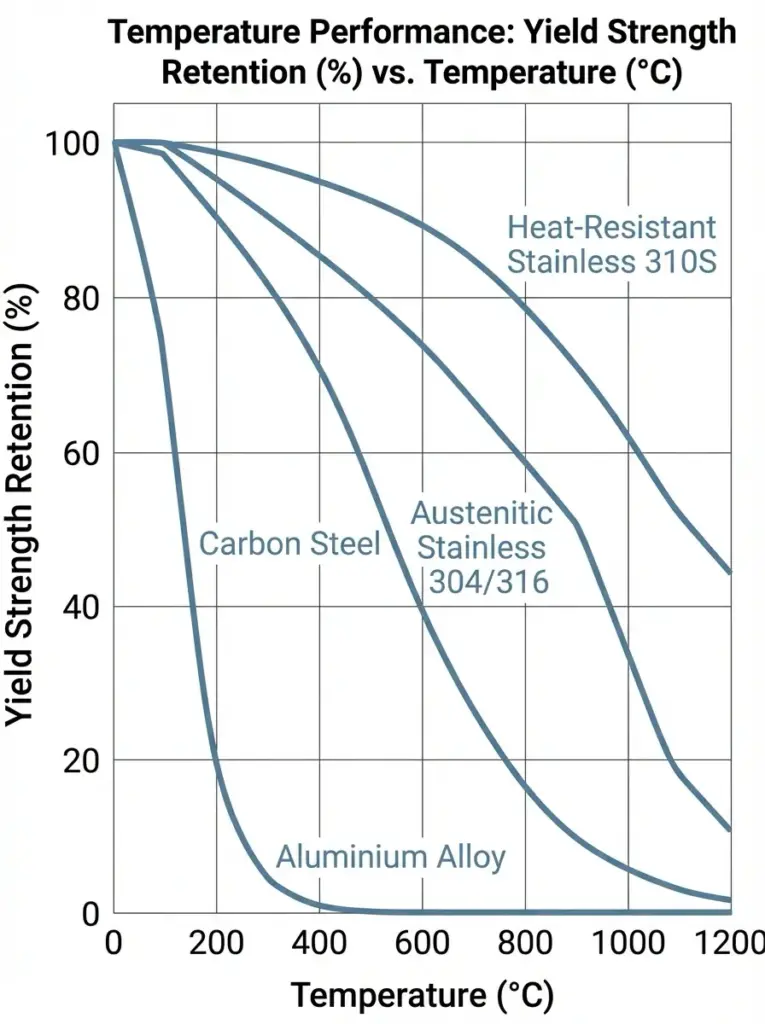

Elevated Temperature Strength and Performance
Stainless steel maintains significant structural capacity at elevated temperatures. At 700°C, both 304 and 316 grades retain approximately 55% of their ambient temperature strength.
The proof strength drops from 225-308 MPa at room temperature to 95-131 MPa at 700°C. This reduction is gradual and predictable, allowing engineers to calculate load-bearing capacity accurately.
Stainless steel outperforms carbon steel significantly in fire conditions. While carbon steel’s modulus can drop to only 9% of ambient value at 800°C, stainless steel maintains much higher structural integrity.
Strength retention at 700°C:
- 304 grade: 95-131 MPa proof strength
- 316 grade: Similar performance range
- Modulus retention: Approximately 72% of ambient value
- Melting point: 1375°C for building grades
Thermal Conductivity and Expansion
Austenitic stainless steels have lower thermal conductivity than ferritic grades. This property helps contain heat flow through structures but can contribute to thermal distortion during rapid temperature changes.
The thermal expansion rate is higher than carbon steel. This characteristic can cause physical distortion in fire conditions where temperature gradients are large and uneven.
At 700°C, the elastic modulus for 304 grade falls from 200 kN/mm² to approximately 144 kN/mm². This represents better retention compared to alternative materials.
Thermal gradients during fires create stress concentrations. Engineers must account for expansion-related movement in connections and joints.
Physical and Mechanical Properties
The Young’s modulus decreases predictably with temperature increase. At ambient conditions, stainless steel typically shows 200 kN/mm² modulus values.
Short-term mechanical properties remain more stable than long-term characteristics. Fire conditions rarely sustain uniform high temperatures long enough to cause significant property degradation.
Critical physical properties in fire:
- Tensile strength: Gradual reduction with temperature
- Elastic modulus: Predictable decrease pattern
- Thermal expansion: Higher than carbon steel
- Conductivity: Lower heat transfer than ferritic grades
Fire doors and structural elements must accommodate thermal movement. Proper allowances prevent seizing and maintain functionality during emergency conditions.
The material’s ductility helps absorb thermal stresses. This characteristic prevents brittle failure modes common in other materials at elevated temperatures.

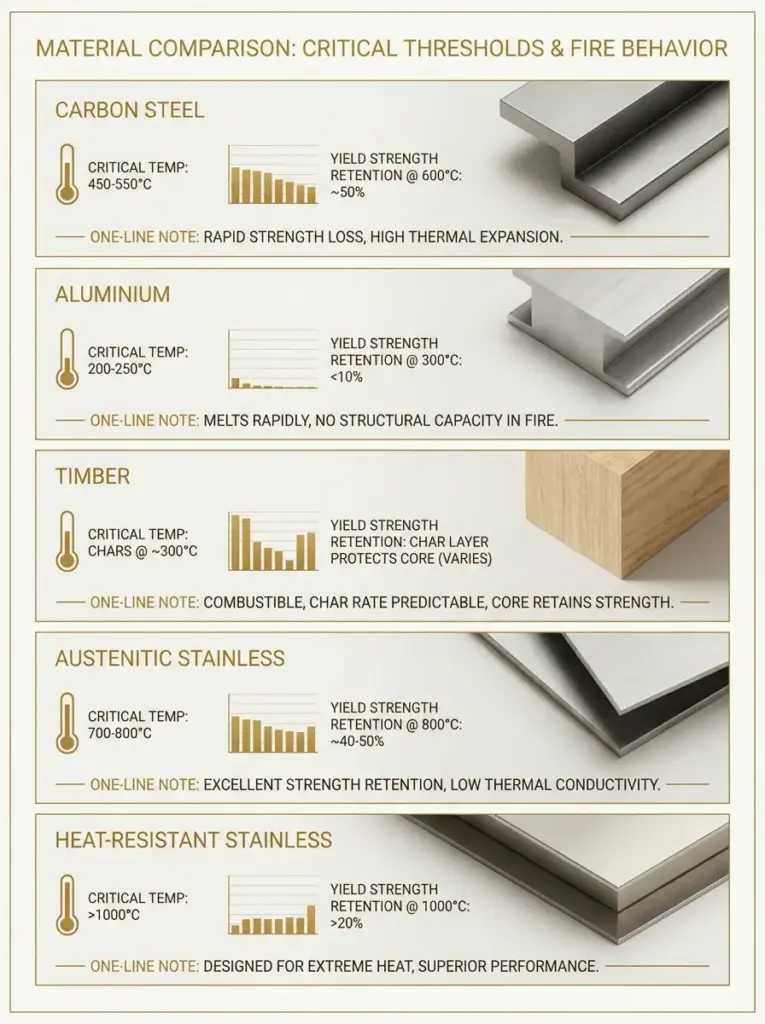

Comparing Stainless Steel to Other Construction Materials
Stainless steel offers distinct advantages over carbon steel in fire resistance applications, while its superior corrosion resistance extends building lifespan compared to standard construction materials. Material selection for fire-safe structures requires evaluating thermal performance, structural integrity at high temperatures, and long-term durability.
Stainless Steels Versus Carbon Steels
Carbon steels contain iron and carbon but lack the chromium content that gives stainless steel its protective properties. This fundamental difference affects their performance in fire conditions.
Fire Performance Differences:
- Carbon steel loses strength rapidly at temperatures above 400°C
- Stainless steel maintains structural integrity up to 800°C
- Carbon steel requires fireproofing coatings in many applications
- Stainless steel often eliminates the need for additional fire protection
Carbon steels expand more during heating than stainless steel. This creates greater structural stress during fires.
The chromium in stainless steel forms a protective oxide layer. Carbon steel lacks this protection and deteriorates faster under heat stress.
Cost Considerations:
Carbon steel costs less initially but requires maintenance coatings. Stainless steel has higher upfront costs but lower lifetime expenses due to reduced maintenance needs.
Corrosion Resistance and Longevity
Stainless steel contains at least 10.5% chromium, which creates a passive protective layer. This layer repairs itself when damaged, providing continuous protection.
Comparison with Other Materials:
- Aluminum: Corrodes in saltwater environments where stainless steel thrives
- Galvanized steel: Protective zinc coating wears away over time
- Carbon steel: Requires regular painting and maintenance to prevent rust
Coastal buildings benefit significantly from stainless steel construction. The material resists salt air corrosion that destroys other metals within years.
Chemical plants and industrial facilities choose stainless steel for its resistance to acids and harsh chemicals. Carbon steel and aluminum cannot withstand these environments without protective coatings.
The recyclability of stainless steel adds to its value. Unlike materials that degrade when recycled, stainless steel maintains its properties through multiple recycling cycles.
Material Selection for Fire-Safe Structures
Fire-safe structures require materials that maintain strength at high temperatures. Material selection depends on building type, occupancy, and local fire codes.
Key Selection Factors:
- Temperature resistance: Maximum operating temperature before strength loss
- Thermal expansion: How much the material expands when heated
- Fire rating requirements: Building codes for specific applications
Stainless steel grades vary in fire performance. Austenitic grades like 304 and 316 perform better than ferritic grades in high-temperature applications.
Wood burns and concrete cracks under extreme heat. Steel maintains its shape but requires fireproofing in many applications.
Stainless steel eliminates fireproofing requirements in some cases. This reduces construction complexity and long-term maintenance costs.
Fire doors, safety barriers, and escape routes benefit from stainless steel construction. The material provides reliable performance when lives depend on structural integrity.
Fire Testing Methods and Performance Validation
Fire testing for stainless steel follows specific standards like BS 476, which tests fabricated components rather than raw materials. The Steel Construction Institute provides design guidance, though software tools are currently unavailable.
Standard Testing Procedures for Stainless Steel
BS 476 serves as the primary standard for fire testing stainless steel building materials and structures. Parts 20, 21, and 22 focus on load-bearing and non-load-bearing elements respectively.
Key testing exclusions for stainless steel include:
- Combustibility tests (Parts 4, 6, 7)
- Fire propagation assessments
- Surface flame spread evaluations
- Heat emission measurements at 750°C
These tests are unnecessary because stainless steel is non-ignitable and does not contribute to fire propagation. The material’s surface remains inert and stable in oxidizing conditions.
Testing must be performed on specific fabricated components under precise conditions. Stainless steel as a raw material does not carry an intrinsic fire rating. Each application requires individual testing to establish performance characteristics.
Role of the Steel Construction Institute
The Steel Construction Institute (SCI) previously developed design software for calculating stainless steel behavior in fire conditions. This automated tool is no longer available to users.
Nancy Baddoo at the SCI coordinates efforts to develop new software versions. Interested parties can contact her at the provided email address to discuss development options.
The latest SCI design manual includes Chapter 8, which covers fire resistance design principles. This resource helps structural engineers understand and apply design methods for stainless steel in fire conditions.
The manual provides comprehensive guidance for engineers working with structural stainless steel applications. It serves as the primary reference for fire-resistant design calculations.
Practical Case Studies and Real-World Applications
Stewart Fraser Ltd. conducted tests on 316 stainless steel fire doors and frames using BS 476 Part 22 standards. After 60 minutes, the safe side temperature reached only 98°C.
The test continued for 2 hours and 10 minutes with doors and frames remaining fully intact. The only damage was thermal distortion and minor discoloration on the safe side.
Duplex stainless steel testing involved 1.4362 type material in a clad ship bulkhead configuration. The 1.5mm thick corrugated profile with ceramic wool insulation faced simulated hydrocarbon fuel fires.
Test conditions reached 1,100°C on the attack side within 15 minutes. The safe face temperature stayed below 30°C after 40 minutes and reached 110°C after 60 minutes.
After 120 minutes, the test unit continued meeting International Maritime Organisation Resolution A517 criteria. The assembly successfully resisted smoke and hot gas penetration throughout the extended test period.
Selecting the Right Stainless Steel Grades for Fire Safety
Different stainless steel families offer varying fire resistance capabilities, with specific grades performing better under extreme temperatures. Material selection depends on structural requirements, temperature exposure, and whether components bear loads during fire conditions.
Austenitic, Ferritic, and Duplex Stainless Steels
Austenitic stainless steels are the most common choice for fire-resistant applications. Grades 304 and 316 maintain structural integrity at temperatures over 800°C and resist melting until 1375°C.
These grades lose strength at high temperatures but retain more stability than carbon steel. At 700°C, austenitic steels maintain about 55% of their room temperature strength.
Type 304 offers good fire resistance for general building applications. Type 316 provides enhanced performance in harsh environments due to added molybdenum.
Ferritic stainless steels can be used in fire applications despite lower high-temperature strength. They have better thermal conductivity than austenitic grades.
Duplex stainless steels combine properties of both families. Grade 2304 has demonstrated excellent fire performance in testing, maintaining barrier integrity for over two hours at 1100°C.
The short-term nature of fire exposure means embrittlement is not a major concern for any family.
Factors Influencing Proper Grade Selection
Temperature exposure determines the minimum grade requirements. Applications expecting sustained temperatures above 800°C need austenitic grades like 304 or 316.
Corrosion resistance matters in fire scenarios where water sprinkler systems create wet conditions. Grade 316 performs better than 304 in these environments.
Thermal expansion affects structural performance during fires. Austenitic steels expand more than ferritic grades, requiring design considerations for distortion.
Cost considerations influence material selection. Grade 304 costs less than 316 but offers lower corrosion resistance.
Availability and fabrication requirements affect practical choices. Standard grades like 304 and 316 are readily available in various forms.
Environmental factors such as chloride exposure or chemical presence guide grade selection beyond fire resistance alone.
Design Considerations for Load-Bearing Elements
Load-bearing elements require careful analysis of strength retention at elevated temperatures. Structural engineers must account for reduced mechanical properties during fire exposure.
Strength calculations must use high-temperature values rather than ambient properties. At 700°C, proof strength drops to 95-131 MPa for austenitic grades compared to 225-308 MPa at room temperature.
Elastic modulus decreases significantly with temperature. Type 304 modulus falls from 200 kN/mm² to 144 kN/mm² at 700°C, though this remains much higher than carbon steel.
Thermal distortion poses challenges for structural elements. Design must accommodate expansion and prevent binding of fire doors or escape routes.
Connection details require special attention since thermal expansion can stress joints and fasteners. Allowances for movement prevent structural failure.
Fire testing of complete assemblies is necessary since individual materials do not carry fire ratings. Testing must evaluate specific fabricated components under precise conditions.
Best Practices for Incorporating Stainless Steel in Fire-Resistant Building Design
Architects and engineers must follow specific guidelines when selecting stainless steel grades and applications for fire safety. Modern innovations expand the uses of stainless steel in building systems, while proper testing ensures compliance with fire resistance standards.
Guidelines for Architects and Engineers
Material Selection Criteria
Architects should prioritize 316-grade stainless steel for critical fire-resistant applications. This grade maintains structural integrity at high temperatures and resists deformation under extreme heat.
Engineers must consider load-bearing requirements when specifying stainless steel components. The material retains its strength at elevated temperatures, making it suitable for structural elements in fire-prone areas.
Design Considerations
Building facades require careful planning when incorporating stainless steel. The non-combustible nature prevents fire spread between floors and building sections.
Thickness specifications matter for fire resistance performance. Thicker stainless steel sheets provide better heat distribution and longer fire resistance times.
Installation Requirements
Proper fastening systems ensure stainless steel maintains its fire-resistant properties. Use compatible stainless steel fasteners to prevent thermal expansion issues.
Joint design affects fire performance. Sealed joints prevent fire and smoke penetration while allowing for thermal movement.
Innovations in Stainless Steel Applications
Cladding Systems
Modern stainless steel cladding systems integrate fire barriers within wall assemblies. These systems protect evacuation routes by maintaining structural integrity during fires.
Corrugated stainless steel sheets offer enhanced fire protection in commercial buildings. The corrugated design provides additional strength while maintaining fire resistance.
Architectural Elements
Stainless steel wire mesh systems create fire-resistant screens for building openings. These applications allow ventilation while preventing fire spread.
Coil and strip forms enable custom fire-resistant components. Manufacturers shape these materials into specialized building elements for unique applications.
Integrated Safety Features
Fire-resistant doors and frames using 316-grade stainless steel achieve 60-minute fire ratings. Testing shows temperatures on the safe side reach only 98°C after one hour.
Stainless steel frameworks support residential cladding systems with enhanced fire protection. These frameworks maintain structural stability during fire events.
Integrating Testing and Standards Compliance
Standard Requirements
ASTM fire testing protocols establish baseline performance for stainless steel components. These tests use increasing temperatures with full design loads to simulate real fire conditions.
AS 1530.3 standards recognize stainless steel’s fire resistance without additional testing requirements. This simplifies approval processes for construction projects.
Testing Protocols
Fire testing on stainless steel doors and frames follows BS 467 part 22 standards. Results demonstrate consistent performance across different stainless steel forms and applications.
Temperature monitoring during testing verifies safe-side performance. Proper testing ensures components meet specified fire resistance ratings.
Compliance Documentation
Building code officials require documentation of fire resistance properties. Stainless steel manufacturers provide certified test results for building approval processes.
Engineers must verify that specified stainless steel grades match tested materials. Documentation ensures consistency between design specifications and installed components.
