How to Wire Sockets Using Twin and Earth Cable

Managing wire sockets with twin and earth cables may seem challenging. However, it can be accomplished with proper procedures. Knowing the fundamentals helps ensure safe and efficient operations. Whether undertaking a remodel or just updating outdated installations, learning this technique is a fundamental skill set for nearly everyone. This guide walks readers through the process step by step. Let’s dive in!

Understanding Twin and Earth Cables

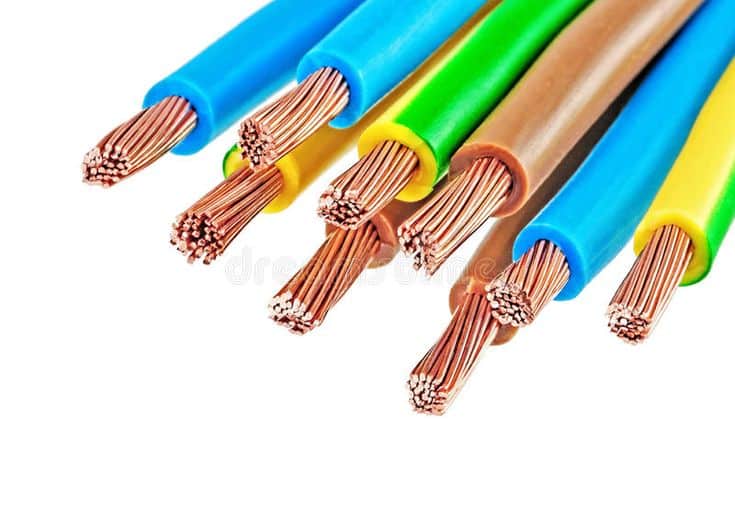

Before diving into socket wiring, familiarising oneself with twin and earth cables is vital. These cables consist of two insulated conductors and an uninsulated earth wire. Typically, the conductors are colour-coded: brown for live and blue for neutral. The uninsulated wire serves as the protective earth. Widely used in domestic wiring, these cables ensure safety and reliability.

Gathering Necessary Tools

Before starting any DIY project, gathering the right tools and materials is essential. You will need a screwdriver, wire stripper, and voltage tester. You will also need a pair of pliers and a cable cutter. Also, ensure you have the required number of brand-new sockets, twins, and world wires of the proper sizes and shapes according to measurements. Having all the tools handy makes the process easier and faster.

Safety First

The importance of safety while working with electrical installations can never be stressed enough. First, turn off the electric supply at the main circuit breaker before you start. This avoids accidental voltage applications. A voltage tester is an essential tool; it helps confirm that there is no electrical current in the already available sockets and that the working environment is safe. If you encounter any signs of electrical malfunctions like smoke or burning smells, call a professional electrician immediately to prevent mishaps.

Removing the Existing Socket

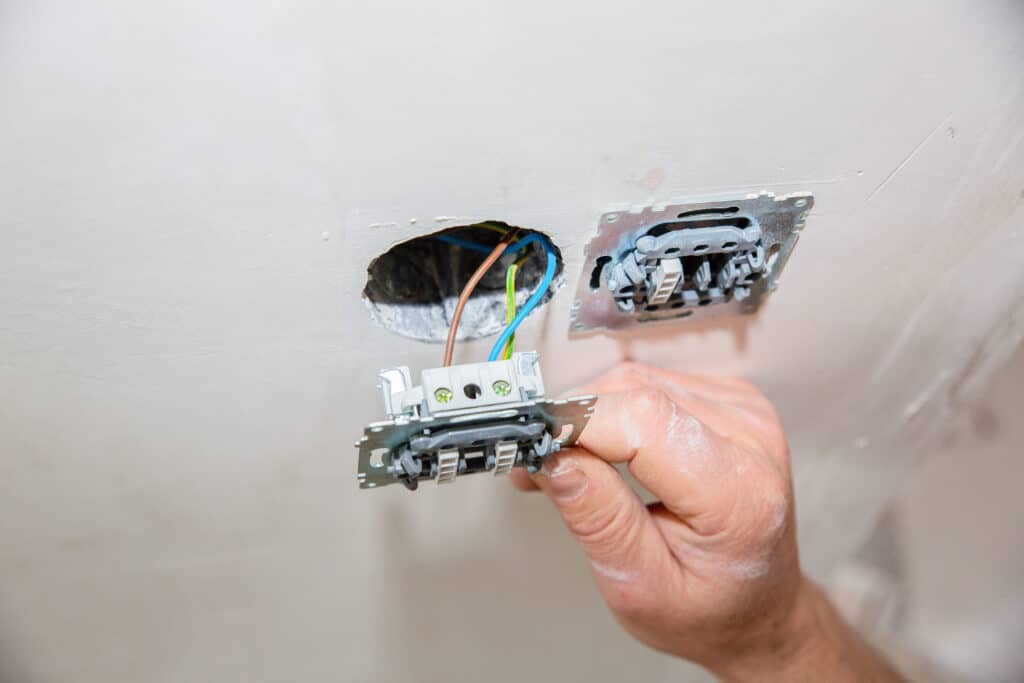

Take out the existing socket. This ensures all safety precautions are in place. Gently unscrew the faceplate with a screwdriver. Unscrew it and carefully pull the socket out of the wall. Make mental notes of how the wiring is hooked up, or take pictures for reference.

Preparing the Twin and Earth Cable

Next, prepare the twin and earth cable for connection. Strip the outer insulation to reveal the three wires inside. Carefully strip the ends of each conductor, exposing enough copper to establish a secure connection. Remember not to nick or damage the wires during this process, as integrity is essential.

Connecting the Wires

Start attaching the wires to your new outlet. First, attach the earth wire to the earth terminal. Attach the live wire to the live terminal, followed by the neutral wire to the neutral terminal, securing everything in place. Make sure to screw in each screw tightly, ensuring no slack wires are present in the connection.

Securing the Socket

Once all wires are attached, you can carefully push the socket back into the wall cavity. With the faceplate and mounting box aligned, ensure no wires are pinched or crimped. Screw in the faceplate, but don’t overtighten it, as you might inadvertently damage the socket by doing so.

Restoring Power

Screw the socket in position, and turn the main circuit breaker to restore power. Check out the socket with a voltage tester to ensure it is in functioning order. When plugged in, checking whether appliances are working helps confirm whether you have installed the wires correctly. If there are any problems, recheck all connections and tighten wires if needed. Sometimes, you may need to move the wires if they are in the wrong position.

Final Checks and Maintenance

Scheduled inspections and upkeep will keep things secure and functional. Periodically inspect connections, tightening any that may have loosened with time. Be on the lookout for frayed cables or any other damage. Fixing problems on time helps avoid fire and other hazards and ensures installations last longer.

Conclusion

Wiring sockets with twins and earth cables may sound technical, but with the right knowledge, it is much simpler than you think! This guide will help you install cables safely and effectively. The more proficient you become, the more confident you will feel about doing it again. It also means you will likely be able to handle more complicated electrical projects confidently in the future. Just remember, safety is important. If you find it challenging to complete a job, do not hesitate to call the experts and get the task accomplished professionally.
